| 1962 Chevrolet Corvette Series 867 | ||
| Convertible | ||
| Standard Specifications | ||
| Show Summary |

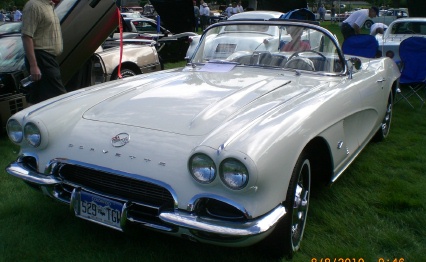

1962 Corvette Convertible
| Original Base Price | $4,038.00 | |
| No. Produced | 14,531 | |
| Body | ||
| Body Maker | Fisher | |
| No. Doors | 2 | |
| Passengers | ||
| Model Number | ||
| Weight | 2,905lbs | |
| Dimension | ||
| Wheelbase | 102 inches | |
| Length | 176.7 inches | |
| Width | 70.4 inches | |
| Height | 52.8 inches | |
| Front Tread | 57 inches | |
| Rear Tread | 59 inches | |
| Engine | ||
| Type | V8, Overhead valve | |
| Displacement | 326.7 cu. in. | |
| Cylinders | 8 | |
| Bore & Stroke | 4 & 3 1/4 inches | |
| Compression Ratio-Std | 10.5 to 1 | |
| Compression Ratio-Opt | Not applicable | |
| Brake Horsepower | 250@4400 | |
| Rated Horsepower | 51.2 | |
| Torque | 350@2800 | |
| Main Bearings | 5 | |
| Valve Lifters | Hydraulic | |
| Block Material | Cast iron | |
| Engine Numbers | Suffix RC (M/T) or SC (A/T) | |
| Engine No. Location | On front right side of block. | |
| Lubrication | Pressure to all bearings excluding wrist pin | |
| Carburetor | ||
| Type | Downdraft 4-barrel | |
| Make | Carter | |
| Transmission | ||
| Type | Synchronous 3-speed manual | |
| Drive | Rear wheel drive | |
| No. Of Gears | 3 | |
| Gear Ratios | ||
| 1st | 2.47 to 1 | |
| 2nd | 1.53 to 1 | |
| 3rd | 1 to 1 | |
| 4th | Not applicable | |
| 5th | Not applicable | |
| Reverse | 2.80 to 1 |
| Clutch Type | Single plate dry disc | ||
| Clutch Size | 10 inches | ||
| Axle Type | Semifloating | ||
| Differential | Hypoid | ||
| Differential Ratio | 3.36 to 1 | ||
| Suspension | |||
| Front | Independent coil springs | ||
| Rear | Longitudinal leaf spring | ||
| Steering Gear | Recirculating ball | ||
| Brakes | |||
| Service | 4 wheel hydraulic drum | ||
| Front Size | 11 inches | ||
| Rear Size | 11 inches | ||
| Emergency | Rear service brakes | ||
| Size | 11 inches | ||
| Other Systems Specifications | |||
| Exhaust System | Dual | ||
| Ignition System | Distributor and coil | ||
| Battery | 12 volt storage battery | ||
| Cooling System | Centrifugal pump with thermostat | ||
| Radiator | Cross flow | ||
| Fuel Type | Premium | ||
| Mileage | |||
| Wheels, Rims & Tires | |||
| Wheel Type | |||
| Wheel Mfr | |||
| Wheel Size | |||
| Tire Type | |||
| Tire Size | 6.7 x 15 | ||
| Spare Location | Trunk | ||
| Capacities | |||
| Fuel | 16.5 Gallons | ||
| Oil | 5 Quarts | ||
| Transmission | 2 Pints | ||
| Cooling System | 18.5 Quarts | ||
| Rear Differential | 4 Pints | ||
| Front Differential | Not applicable | ||
| Transfer Case | Not applicable | ||
| Classic Rating | Milestone Car | ||
| VIN/ID | |||
| VIN/Serial no. | 20867S100001 to 20867S114531 | ||
| VIN Description | Total Digits: 12 | ||
| Digits 1: Model year | |||
| Digits 2-3: Series | |||
| Digits 4-5: Body style | |||
| Digits 6: Assembly plant | |||
| Digits 7-12: Production number | |||
| VIN Location | |||
|
| |||
| Additional Information | |||
| Cooling system capacity includes heater. Number produced includes all Corvettes for this year. | |||
| References | |
| 1962 Chevrolet Shop Manual Supplement | Los Angeles Public Library 630 West Fifth Street Los Angeles CA 90071 (213) 228-7000 www.lapl.org |
| http://thevettenet.com/corvette_specs.php | Website www.thevettenet.com/corvette_specs.php |
| Serial No. Book for US Cars 1900-1975 G. Brigham | Horseless Carriage Foundation 8186 Center St. Suite F P.O. Box 4119 La Mesa CA 91944-4119 (619) 464-0301 www.hcfi.org |
| Motor Age April 1962 | Los Angeles Public Library |
| Motor's Auto Repair Manual 28th Edition | Los Angeles Public Library |
| Exterior Colors | ||
| Paint Type | Lacquer | |
| Colors | All colors may not be available in all models. | |
| Roman Red | ||
| Almond Beige | ||
| Sateen Silver Metallic | ||
| Ermine White | ||
| Honduras Maroon Metallic | ||
| Fawn Beige Metallic | ||
| Tuxedo Black | ||
| Standard/Optional Equipment | ||
| Powerglide automatic transmission | Opt | |
| Fuel Injection | Opt | |
| Power convertible top | Opt | |
| Auxiliary hardtop for convertibles | Opt | |
| 4-Speed manual transmission | Opt | |
| Power windows | Opt | |
| Radio | Opt | |
